Steel Gratings
Steel Gratings - Industrial Steel Grating Products
Steel gratings — comprehensive range of heavy-duty steel grating for industrial flooring, walkways, and platforms. Welded, press locked, and serrated options available.
Galería

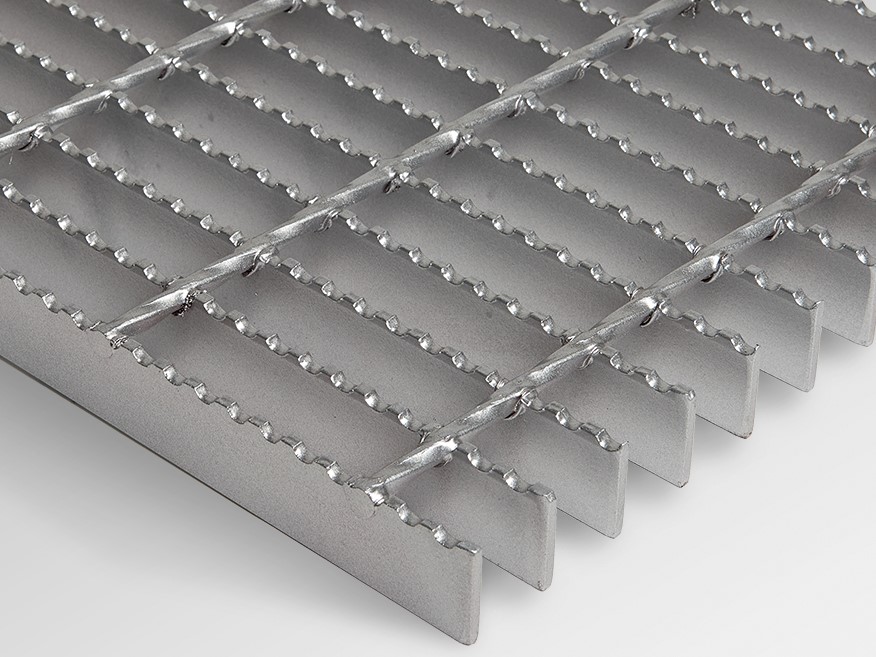

Steel Grating Panel Display
Heavy Duty Steel Grating
Steel Grating Types Overview
Steel Grating Applications
Overview
Complete Range of Industrial Steel Grating Products
Our comprehensive range of steel gratings covers every industrial application requirement. Manufactured from high-quality carbon steel with optional hot-dip galvanized finish, our gratings deliver reliable performance in factories, warehouses, power plants, and commercial buildings worldwide.
Available in welded, press-locked, swage-locked, and riveted constructions, steel gratings offer versatile solutions for flooring, walkways, platforms, trench covers, and drainage covers. Each type is engineered to meet specific load requirements while maximizing open area for light and air passage.
With standard panel sizes up to 6 meters in length and bearing bar heights from 20 mm to 100 mm, our steel gratings can be custom-fabricated to your exact specifications. Hot-dip galvanizing provides long-lasting corrosion protection for outdoor and high-moisture environments.
Especificaciones
Ficha Técnica
Technical Specifications
Detailed dimensions and load ratings
Dimensiones
| Parameter | Value |
|---|---|
| Material | Carbon Steel (Q235 / SS400 / S275JR) or Galvanized Steel |
| Bearing Bar Height | 20 mm – 100 mm |
| Bearing Bar Thickness | 3 mm – 8 mm |
| Load Bar Spacing | 30 mm / 40 mm / 60 mm / 100 mm |
| Cross Bar Spacing | 50 mm / 76 mm / 100 mm |
| Panel Width | 500 mm – 1200 mm |
| Panel Length | Up to 6000 mm (custom available) |
| Surface Treatment | Black / Painted / Hot-Dip Galvanized / Epoxy Coated |
Características
Características y Ventajas
Key Features
Why choose this grating type
High Strength & Durability
Manufactured from premium carbon steel with bearing bars up to 100 mm in height, our gratings provide exceptional load-bearing capacity for heavy industrial applications including vehicle traffic.
Multiple Construction Types
Available in welded, press-locked, swage-locked, and riveted constructions, allowing you to select the optimal balance of strength, weight, and open area for your specific application.
Hot-Dip Galvanized Option
Our hot-dip galvanized finish provides superior corrosion protection, extending service life to 30+ years in outdoor and high-moisture environments without requiring painting or maintenance.
Slip-Resistant Surfaces
Serrated and dimpled surface patterns provide enhanced traction for worker safety in wet, oily, or icy conditions, meeting OSHA and international safety standards.
Open Area Design
The open grid design allows light, air, water, and debris to pass through, reducing wind load on elevated structures and preventing accumulation of hazardous materials on walking surfaces.
Cost-Effective Solution
Steel gratings offer the lowest cost-per-square-meter among industrial flooring solutions, with fast installation and minimal maintenance requirements over their long service life.
Aplicaciones
Dónde se Instala
Industrial Flooring
Heavy-duty flooring systems for factories, warehouses, and manufacturing facilities
Walkways & Platforms
Elevated walkways and platform access systems in industrial and commercial buildings
Trench & Drain Covers
Durable trench grating and drainage covers for municipal and industrial infrastructure
Safety Barriers & Machine Guarding
Heavy-duty grating panels for safety barriers, machine guarding enclosures and perimeter fencing in industrial plants.
