Bar Grating - Steel & Aluminum Bar Grating Products
Heavy-duty welded bar grating in steel, aluminum, and stainless steel. Standard and serrated surfaces for industrial flooring, walkways, and platform applications.
Galería

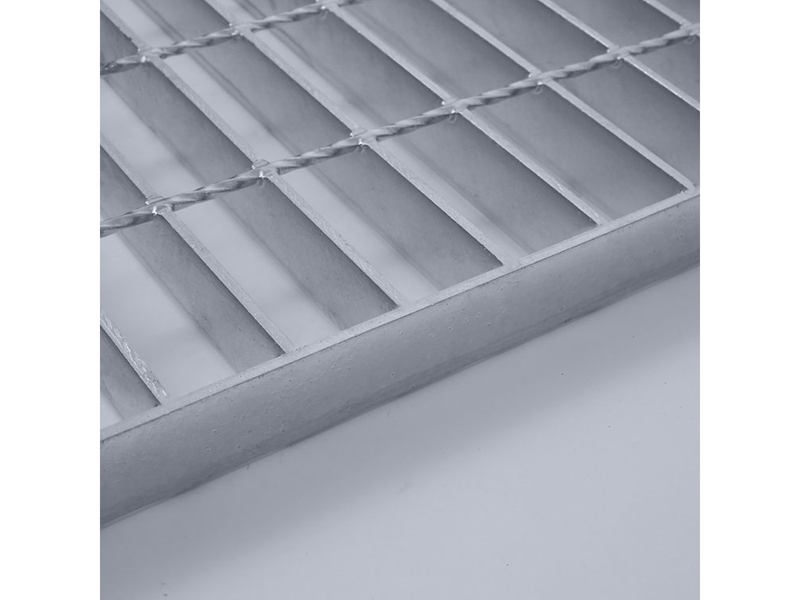

Serrated Bar Grating - Anti-Slip Surface

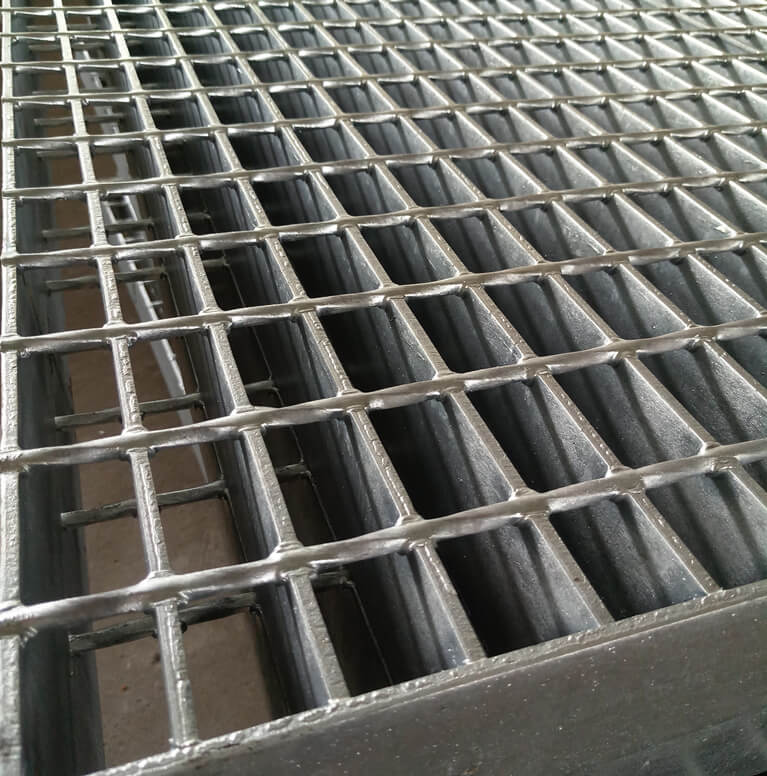

Aluminum Bar Grating - Lightweight & Corrosion Resistant

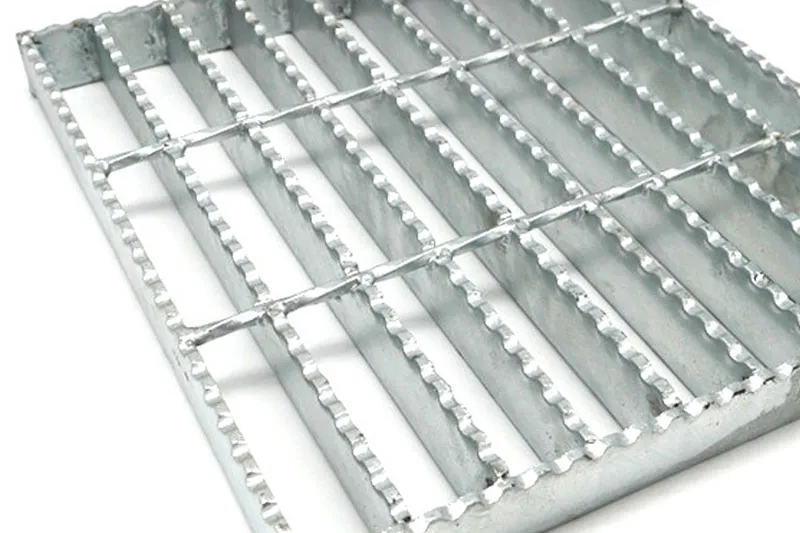

Welded Bar Grating

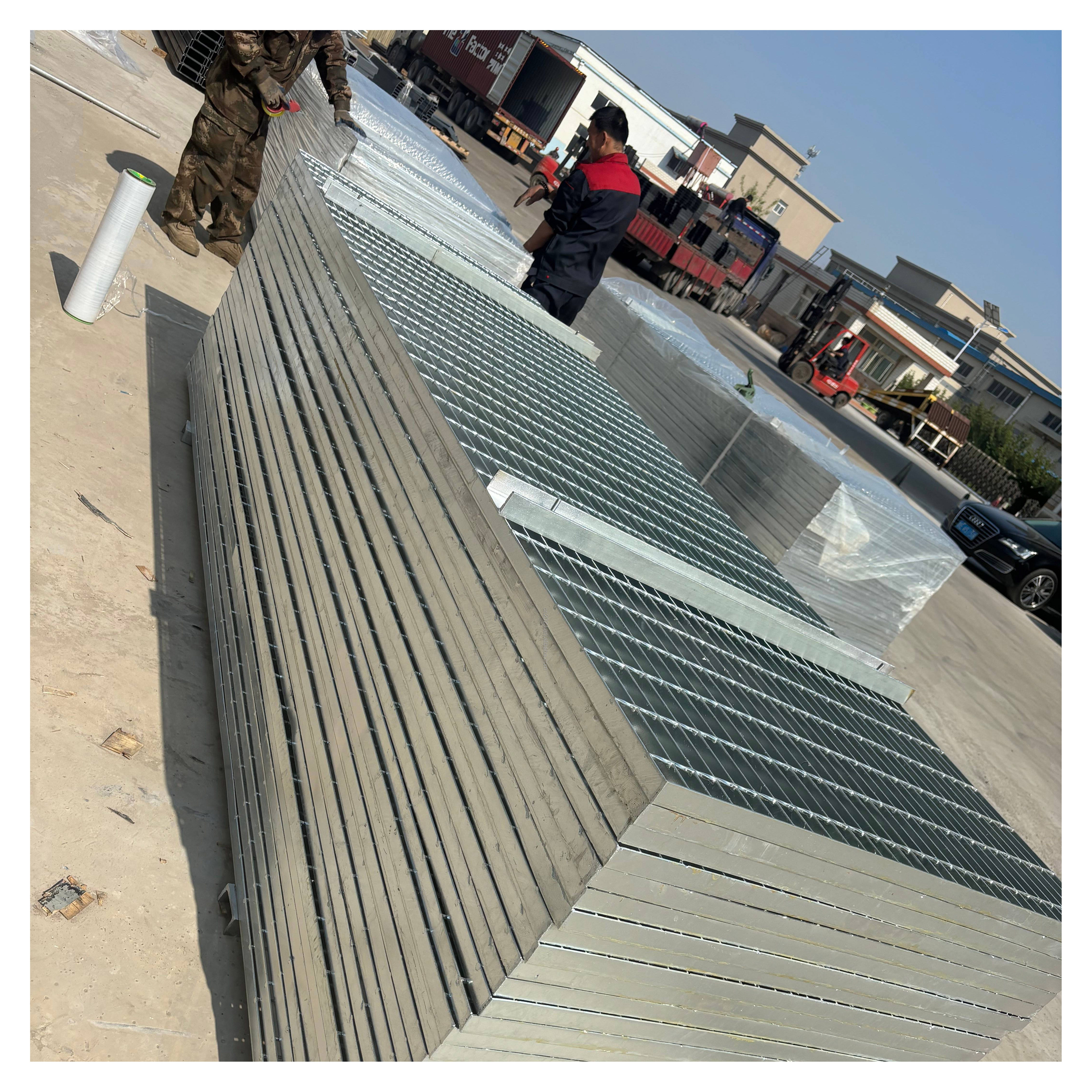

Bar Grating Variety
Overview
What is Bar Grating?
Bar grating is a versatile industrial product consisting of parallel bearing bars spaced at regular intervals with cross bars welded or press-locked perpendicularly. This grid-like structure provides an open surface that combines high load-bearing capacity with excellent drainage, ventilation, and light transmission. Bar grating is manufactured in steel, aluminum, and stainless steel to suit different environmental and load requirements.
Available in welded, press-locked, and swage-locked constructions, bar grating can be customized with serrated surfaces for anti-slip applications. Bearing bar depths range from 1 inch to 6 inches with thicknesses of 1/8 inch to 1/4 inch for steel and 3/16 inch to 3/8 inch for aluminum. Standard panel sizes are 3 ft x 20 ft, with custom sizes available upon request.
Common applications include industrial flooring, platforms, walkways, drainage covers, trench covers, and security barriers. Bar grating meets OSHA safe-loading requirements and is available in various load classifications from light-duty pedestrian to heavy-duty vehicular traffic.
Especificaciones
Ficha Técnica
Dimensiones
| Parameter | Value |
|---|---|
| Material Options | Carbon Steel (A36), Stainless Steel (304/316), Aluminum (6061-T6) |
| Bearing Bar Depth | 1" (25mm) to 6" (152mm) |
| Bearing Bar Thickness | 1/8" (3mm) to 1/4" (6mm) Steel; 3/16" (5mm) to 3/8" (10mm) Aluminum |
| Bar Spacing (Centers) | 1-3/16", 1-3/8", 1-5/8", 2-3/8", 3", 4", 6" |
| Cross Bar Spacing | 2" (50mm) or 4" (100mm) on center |
| Panel Sizes | Standard: 3' x 20' (0.9m x 6.1m); Custom sizes available |
| Load Classifications | Light Duty (125 psf), Medium Duty (250 psf), Heavy Duty (500 psf), Extra Heavy (1,000 psf) |
| Surface Options | Smooth (plain), Serrated (anti-slip), Galvanized, Painted |
Características
Características y Ventajas
Multiple Material Options
Available in carbon steel for strength, aluminum for lightweight corrosion resistance, and stainless steel 304/316 for hygienic and highly corrosive environments. Each material can be optimized for the specific application.
Serrated Anti-Slip Surface
Serrated bearing bars provide superior slip resistance in wet, oily, or icy conditions. The serrations are rolled into the top surface of each bearing bar, creating a rough texture that exceeds OSHA and ADA slip-resistance requirements for walkways and platforms.
High Strength-to-Weight Ratio
The open grid design maximizes structural strength while minimizing weight. Bar grating supports heavy loads without the dead weight of solid flooring, reducing structural steel requirements and installation costs.
Open Area for Drainage & Ventilation
The open area (typically 40-70% depending on bar spacing) allows water, debris, and air to pass through freely. This prevents pooling, reduces wind load on elevated structures, and provides natural ventilation in platform applications.
Aplicaciones
Dónde se Instala
Industrial Flooring
Heavy-duty flooring for factories, warehouses, and manufacturing plants
Walkway Platforms
Elevated walkways, mezzanine floors, and catwalk platforms
Trench & Drain Covers
Heavy-duty trench covers and drainage grates for industrial utility systems
Safety Flooring & Barriers
Anti-slip grating panels for safety flooring, danger zone marking, machine guarding and barrier systems in industrial facilities.
