Heavy Duty Grade
Heavy Duty Steel Grating
Heavy duty steel grating engineered for extreme loads — up to 1,000 psf load capacity with thick bearing bars for mining, truck wash, and heavy industrial platforms.
Galería

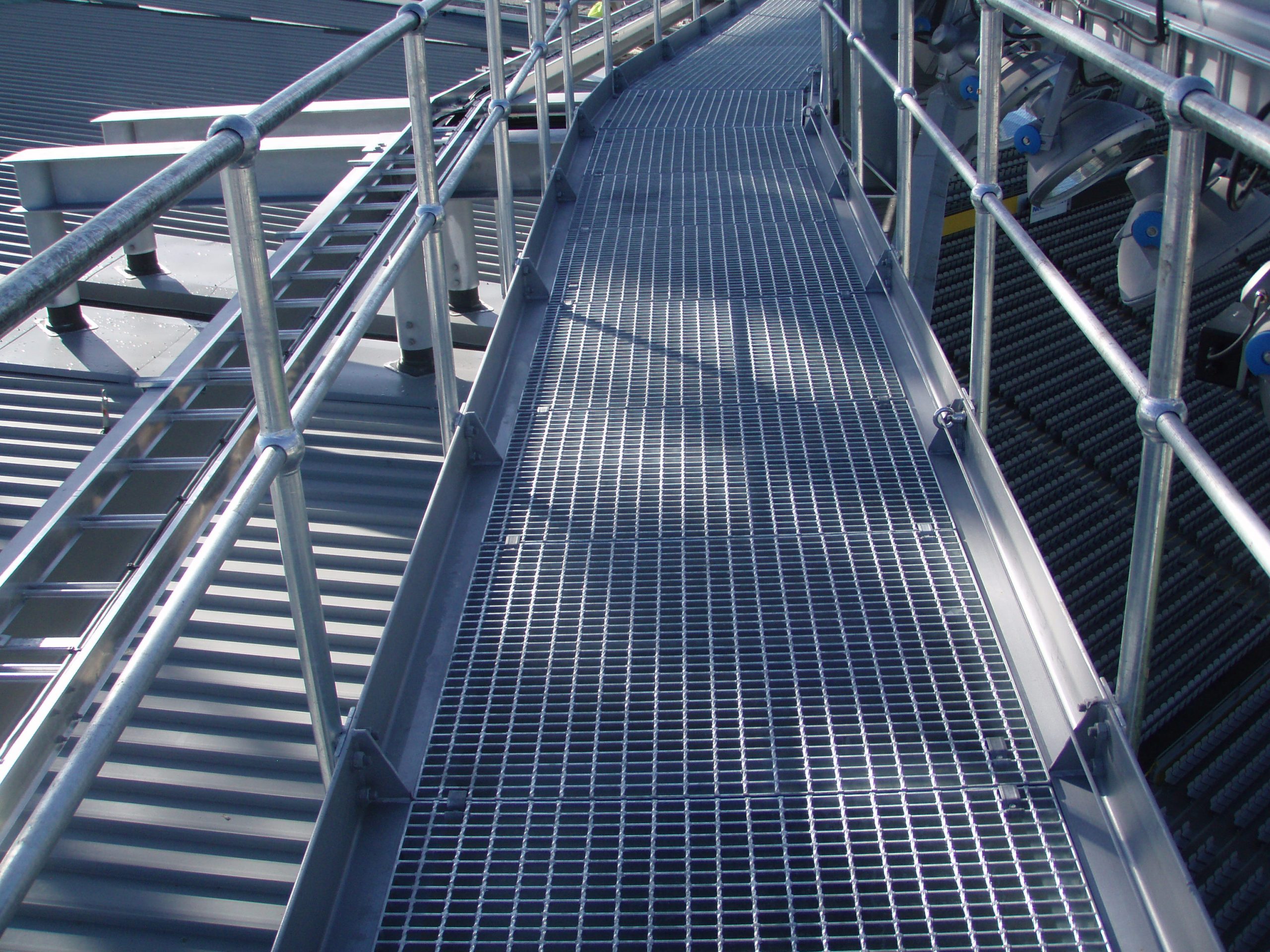

HD Platform Installation

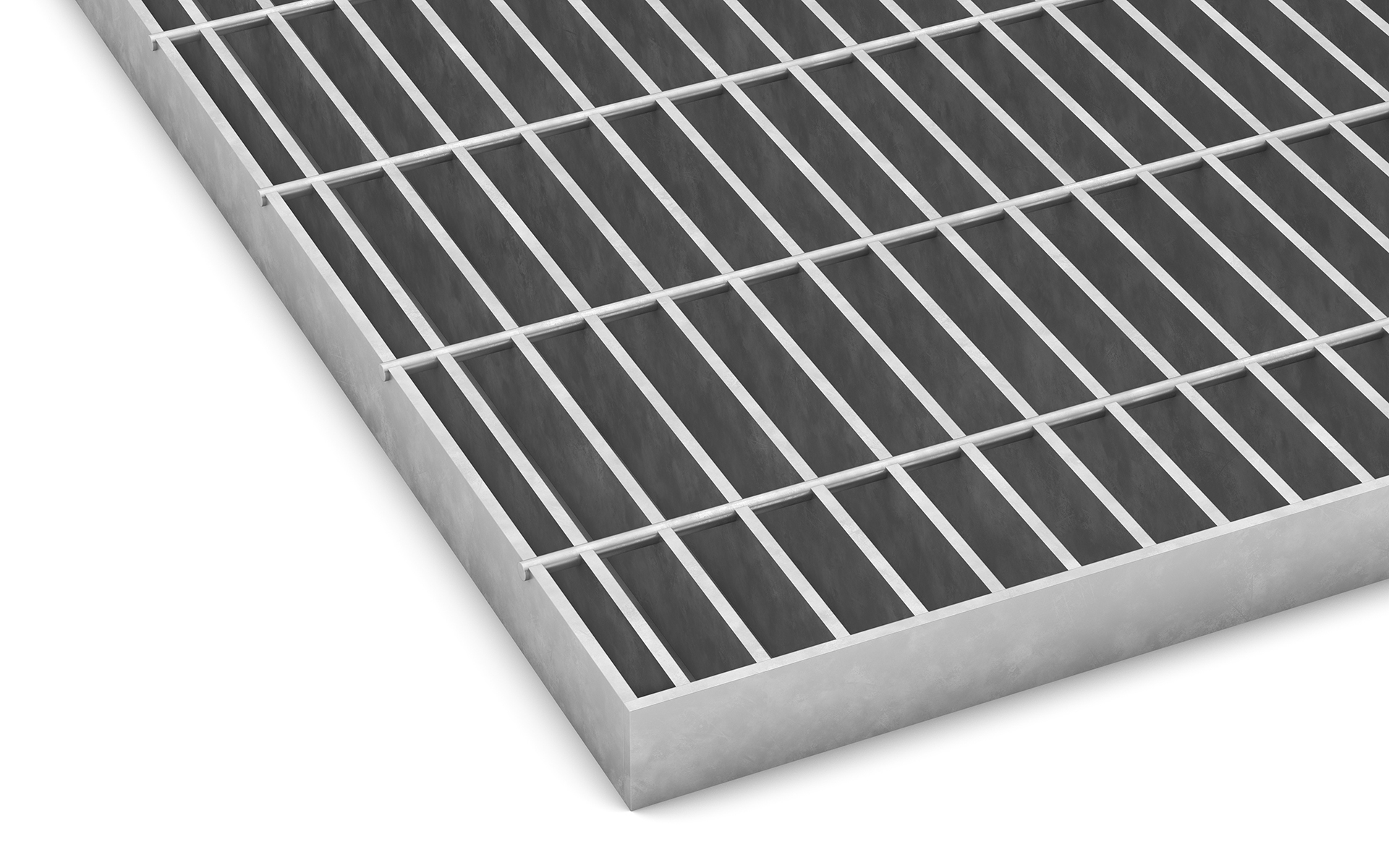

Mining & Truck Wash Grating
Heavy Duty Grating - Load Test
Heavy Duty Grating Application
What Is Heavy Duty Steel Grating?
Heavy duty steel grating is an industrial-grade floor grating system designed specifically for applications requiring exceptionally high load-bearing capacity. Unlike standard steel grating, heavy duty variants feature thicker bearing bars (typically 5mm–8mm) and closer bar spacing (20mm–40mm center-to-center), enabling them to withstand extreme loads up to 1,000 psf or more.
Manufactured from high-strength carbon steel (ASTM A36 or S275JR) with hot-dip galvanized finish, heavy duty steel grating delivers superior durability in the most demanding environments. Common configurations include welded and press-locked styles, with bearing bar depths ranging from 25mm to 75mm to accommodate varying load requirements.
Typical industrial applications include truck wash bay flooring, mining platform walkways, heavy equipment mezzanines, vehicle access covers, and industrial trench covers. Each panel is custom-fabricated to exact job specifications with cutouts, banding, and plasma-cut end plates as required.
Especificaciones
Ficha Técnica
Dimensiones
| Parameter | Value |
|---|---|
| Material | Carbon Steel ASTM A36 / S275JR |
| Bearing Bar Thickness | 5 mm – 8 mm |
| Bearing Bar Depth | 25 mm – 75 mm |
| Bar Spacing (Center-to-Center) | 20 mm – 40 mm |
| Cross Bar Spacing | 50 mm – 100 mm |
| Surface Finish | Hot-Dip Galvanized (ASTM A123) / Plain / Painted |
| Load Capacity | Up to 1,000 psf (48 kN/m²) |
| Max Panel Size | 6,000 mm × 1,000 mm (custom available) |
Características
Características y Ventajas
Exceptional Load-Bearing Capacity
Designed for extreme loads with bearing bar thickness up to 8 mm, supporting uniform loads of 1,000 psf and concentrated loads from heavy vehicles and machinery.

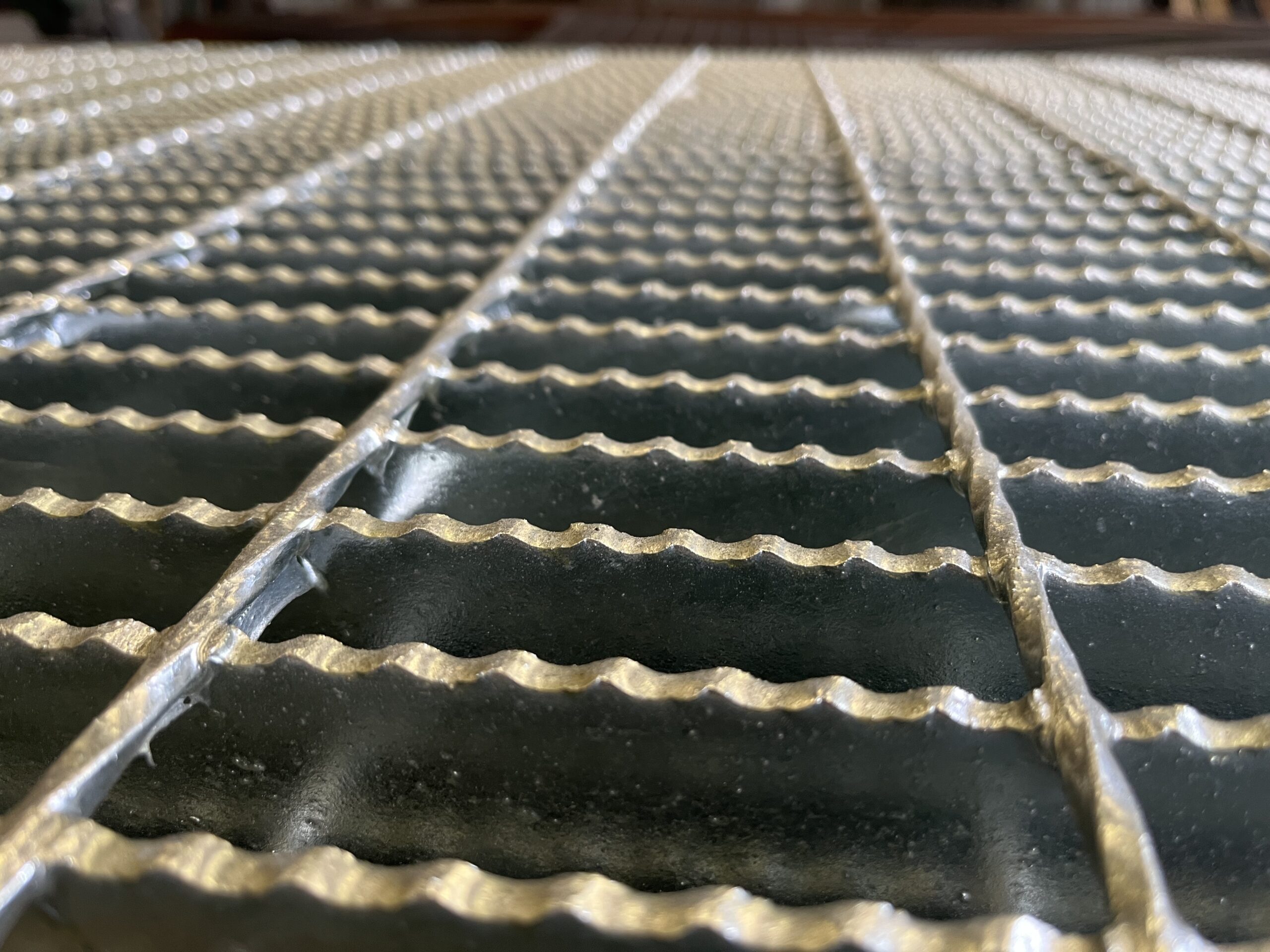

Serrated Surface Option for Slip Resistance
Serrated bearing bars provide superior anti-slip performance in wet, oily, or debris-laden environments, meeting OSHA and ANSI safety standards.
Custom Fabrication & Cutouts
Each panel is custom-fabricated with plasma-cut holes, notches, banding, and end plates to match your exact structural drawing requirements.
Hot-Dip Galvanized Corrosion Protection
Full HDG coating per ASTM A123 provides long-term corrosion resistance, making the grating suitable for outdoor, wash-down, and chemical exposure environments.
High Strength-to-Weight Ratio
Compared to solid steel plate, heavy duty grating reduces structural dead load by up to 60% while maintaining equivalent strength, reducing support steel requirements.
Modular & Reusable Design
Panelized construction allows rapid installation, easy removal for equipment access, and full reusability when facility layouts change.
Aplicaciones
Dónde se Instala
Mining & Quarry Platforms
Heavy duty grating for mining walkways, screen decks, and equipment platforms with extreme load demands
Truck Wash Bay Flooring
HD grating for truck wash bays supporting 50-ton vehicles with excellent drainage and slip resistance
Heavy Equipment Mezzanines
Catwalks and mezzanine flooring for heavy machinery access and maintenance in industrial facilities
Industrial Trench & Pit Covers
Load-bearing trench covers and pit access grating for industrial drainage and utility access points
