Stainless Steel 304/316
Stainless Steel Grating
Premium corrosion-resistant stainless steel grating (304/316) for food processing, chemical, marine, and pharmaceutical industries. High strength, hygienic design, and long service life.
Galería

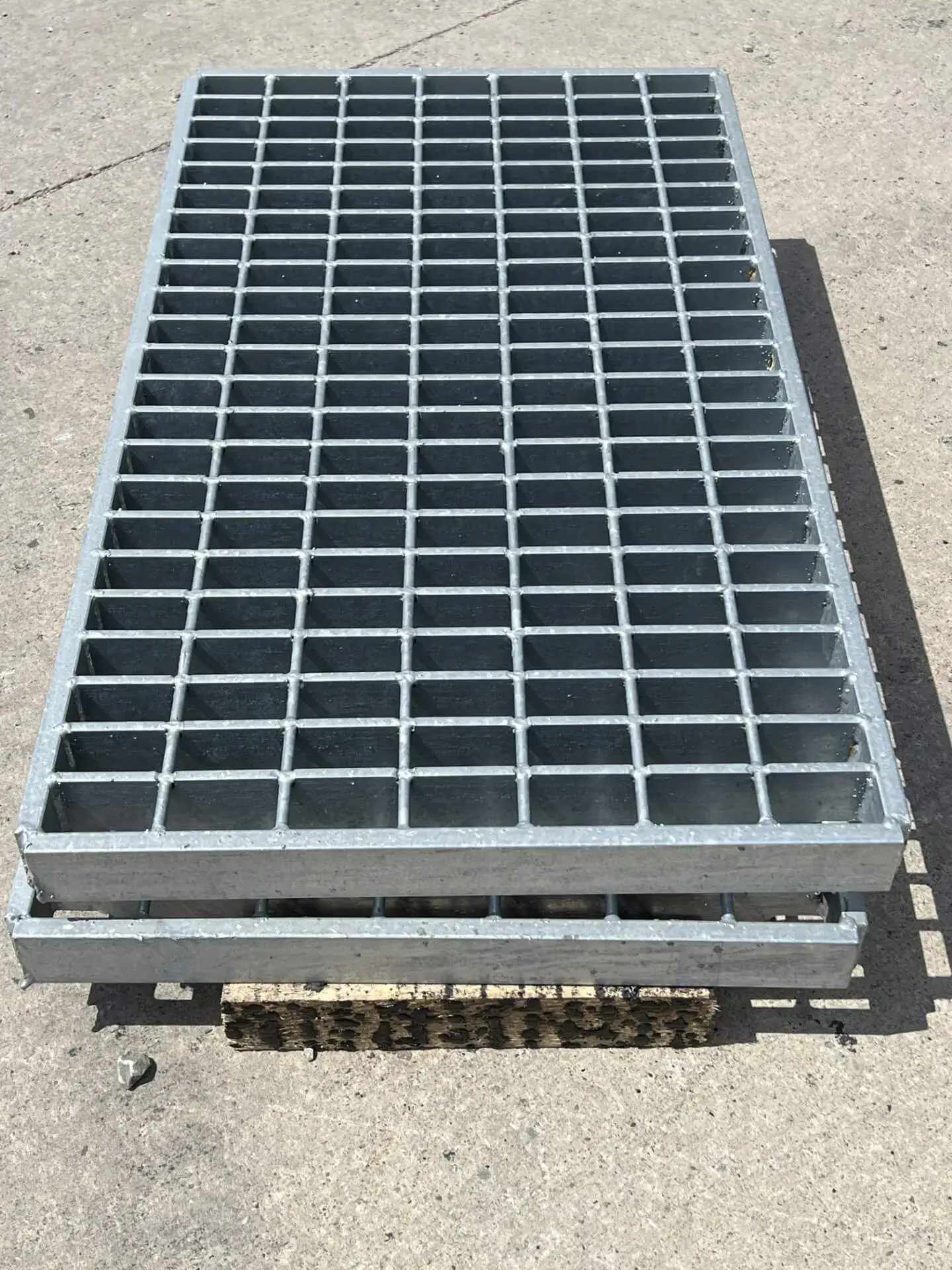

Welded Stainless Steel Grating Panel

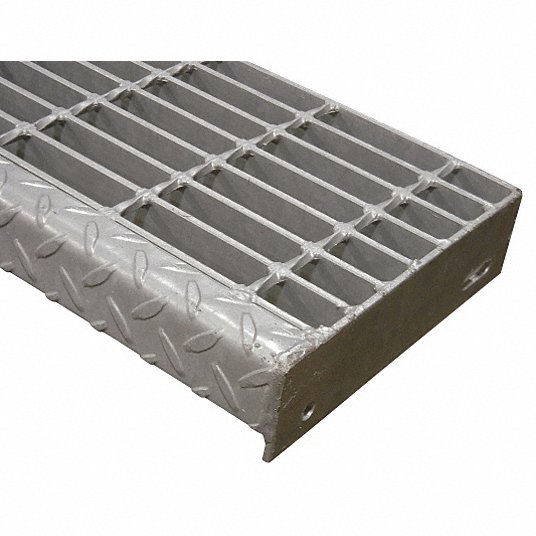

Heavy Duty Stainless Steel Grating
Stainless Steel Detail View
Stainless Steel Application
Overview
Premium Stainless Steel Grating for Harsh Environments
Stainless steel grating offers superior corrosion resistance and durability in the most demanding industrial environments. Manufactured from high-grade 304 or 316 stainless steel, our grating panels provide exceptional strength while maintaining a clean, professional appearance that withstands moisture, chemicals, and extreme temperatures.
Ideal for food processing plants, pharmaceutical facilities, marine applications, and wastewater treatment plants, stainless steel grating eliminates the risk of rust contamination while delivering reliable load-bearing performance. The non-corrosive nature ensures decades of service life with minimal maintenance requirements.
Available in welded, press-locked, and swage-locked constructions, our stainless steel grating can be customized to meet specific project requirements. Choose from standard 304 grade for general applications or 316 grade for enhanced corrosion resistance in coastal and chemical environments.
Especificaciones
Ficha Técnica
Technical Specifications
Detailed dimensions and load ratings
Dimensiones
| Parameter | Value |
|---|---|
| Material Grade | 304 / 304L / 316 / 316L Stainless Steel |
| Bar Height | 20 mm – 75 mm |
| Bar Thickness | 3 mm – 6 mm |
| Clear Spacing (Load Bars) | 30 mm / 40 mm / 50 mm / 100 mm |
| Cross Bar Spacing | 50 mm / 100 mm |
| Panel Width | 600 mm – 1200 mm |
| Panel Length | Up to 6000 mm |
| Surface Finish | Mill Finish / Pickled & Passivated / Electropolished |
Características
Características y Ventajas
Key Features
Why choose this grating type
Superior Corrosion Resistance
Manufactured from 304 and 316 stainless steel, our grating withstands moisture, chemicals, and saltwater exposure without rusting or corroding, ensuring decades of service life in harsh environments.
High Load-Bearing Capacity
Engineered bearing bars up to 75 mm in height deliver exceptional strength-to-weight ratios, supporting heavy industrial loads while maintaining structural integrity under constant foot and vehicle traffic.
Low Maintenance & Hygienic
The non-porous stainless steel surface resists bacterial growth and is easy to clean with standard industrial sanitization procedures, making it ideal for food processing and pharmaceutical applications.
Customizable Configurations
Available in welded, press-locked, and swage-locked styles with custom panel sizes, bar spacing, and surface finishes to match exact project specifications and load requirements.
Slip-Resistant Surface Options
Choose from serrated or dimpled surface patterns that provide enhanced traction in wet or oily conditions, meeting OSHA safety standards for walkway and platform applications.
Aplicaciones
Dónde se Instala
Food Processing Plants
Hygienic flooring and platforms in food processing facilities requiring corrosion resistance
Chemical Processing
Walkways and platforms in chemical plants where corrosive substances are present
Marine & Offshore
Decks and walkways on ships, oil rigs, and coastal structures exposed to saltwater
Pharmaceutical Industry
Clean room flooring and platform access systems requiring sterile conditions
