Welded Steel Grating – Industrial-Grade Bar Grating for Heavy-Duty Flooring & Walkways
Factory-direct welded steel grating manufactured to ASTM A36 / A1011 standards. Available in carbon steel, galvanized, and stainless steel with bearing bar depths from 1 in to 6 in and custom panel sizes.
Galería
Welded Grating Installation

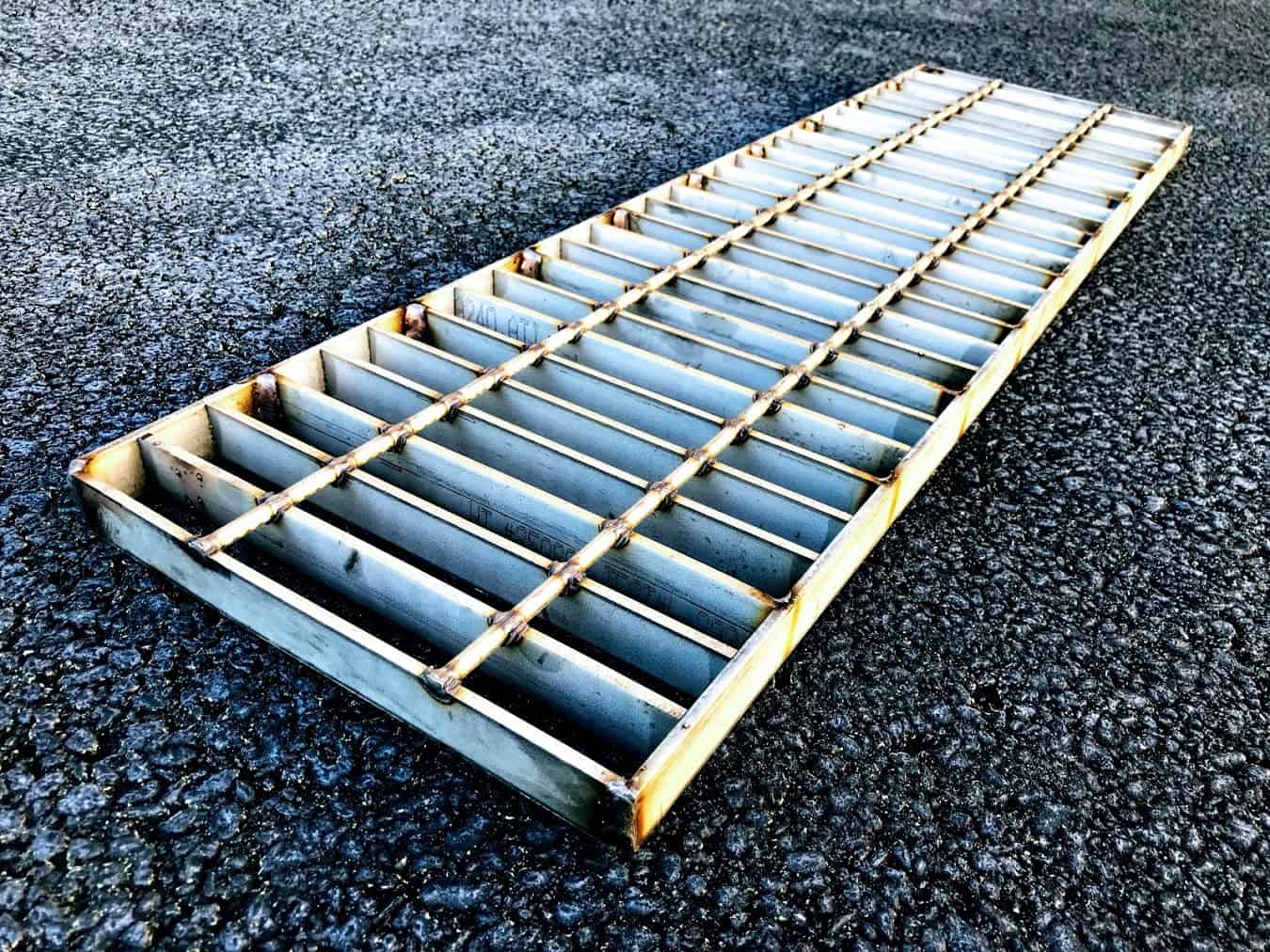

Welded Joint Detail Close-Up
Welded Grating Production
Welded Grating Quality Check
Overview
What Is Welded Steel Grating?

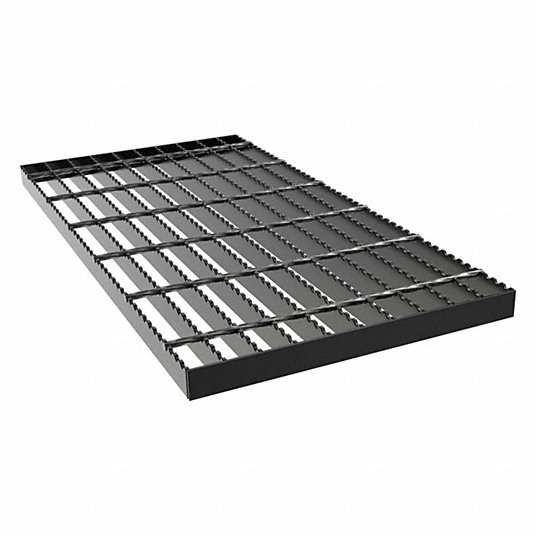

Welded steel grating is the most widely used type of industrial bar grating, manufactured by resistance-welding flat bearing bars to round cross bars at every intersection. This creates a rigid, one-piece panel that offers exceptional strength-to-weight ratio and long service life. The electric resistance welding (ERW) process fuses the bars at each joint without filler metal, producing a uniform bond that is stronger than the base material.
Manufactured to ASTM A36 and A1011 standards, welded steel grating is available in carbon steel, hot-dip galvanized steel, and stainless steel grades (304, 316). Bearing bar depths range from 1 inch to 6 inches with thicknesses from 1/8 inch to 3/8 inch, providing load capacities suitable for pedestrian walkways through heavy-duty industrial trucking areas.
Standard panel sizes are 1 ft x 20 ft, 3 ft x 20 ft, and custom dimensions up to 48 inches wide by 24 ft long. With bar spacing options of 1-3/16 inch, 1-3/8 inch, or 2-3/8 inch on center, welded steel grating can be tailored to any load requirement, spanning condition, or open area specification.
Especificaciones
Ficha Técnica
Dimensiones
| Parameter | Value |
|---|---|
| Material Grades | Carbon Steel (ASTM A36/A1011), Stainless Steel 304/316, Galvanized Steel |
| Bearing Bar Depth | 1 in, 1-1/4 in, 1-1/2 in, 2 in, 2-1/2 in, 3 in, 4 in, 5 in, 6 in |
| Bearing Bar Thickness | 1/8 in, 3/16 in, 1/4 in, 5/16 in, 3/8 in |
| Cross Bar Spacing | 2 in, 4 in, 6 in (center-to-center standard) |
| Bearing Bar Spacing | 1-3/16 in, 1-3/8 in, 1-3/4 in, 2-3/8 in (center-to-center) |
| Panel Length | Up to 24 ft (custom lengths available) |
| Panel Width | Up to 48 in standard; wider panels available on request |
| Surface Finishes | Mill finish, Hot-Dip Galvanized (ASTM A123), Epoxy Coated, Painted |
Características
Características y Ventajas
Superior Weld Strength
Electric resistance welding at every bar intersection creates full-penetration fusion welds that exceed the strength of the base metal. No filler material is used, ensuring consistent quality and structural integrity across the entire panel.
High Strength-to-Weight Ratio
The open-grid design maximizes load capacity while minimizing dead weight. With bearing bar depths up to 6 inches, welded steel grating supports heavy industrial loads using significantly less material than solid plate flooring.
Excellent Drainage & Ventilation
The open area design (typically 40-70% open) allows water, debris, and airborne particles to pass through freely, preventing ponding and reducing wind uplift. Ideal for outdoor platforms, drainage trenches, and ventilation applications.
Anti-Slip Safety Options

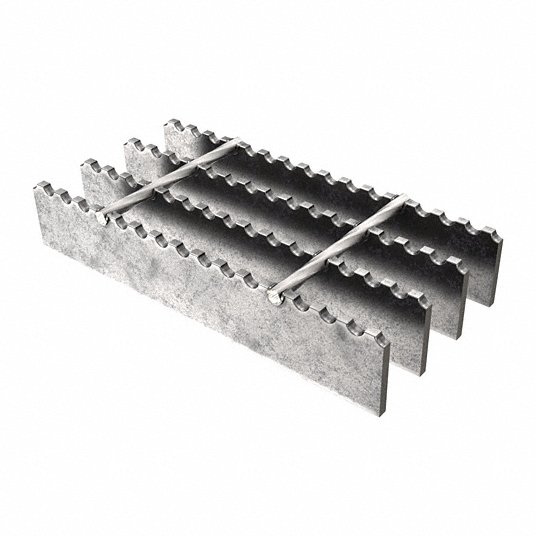

Available with serrated bearing bars that provide superior slip resistance in wet, oily, or icy conditions, making them ideal for industrial walkways and platforms.
Corrosion Resistant Finishes
Hot-dip galvanizing per ASTM A123 provides 50+ years of corrosion protection in outdoor environments. Stainless steel 304/316 options are available for chemical, food processing, and marine applications.
Fully Customizable Dimensions
Panels can be fabricated to custom widths, lengths, bar spacing, and load classifications. Cutouts, notches, banding, and toe plates can be added to meet exact project specifications.
Aplicaciones
Dónde se Instala
Industrial Flooring & Platforms
Heavy-duty flooring for factories, refineries, and processing plants with high load requirements.
Walkways & Catwalks
Safe, slip-resistant pedestrian walkways and elevated catwalks for industrial facilities.
Drainage Covers & Trench Grating
Heavy-duty trench covers for stormwater drainage, utility channels, and municipal infrastructure.
Safety Barriers & Guarding
Heavy-duty welded grating panels for safety barriers, machine guarding, and perimeter protection in industrial settings.
