Press Locked Grating – Mechanical Interlocking for Superior Strength
Press locked grating — precision-engineered mechanical interlocking with no welding or loose parts. Ideal for walkways, platforms, and industrial flooring.
Galería
Close-Up of Press Locked Joints

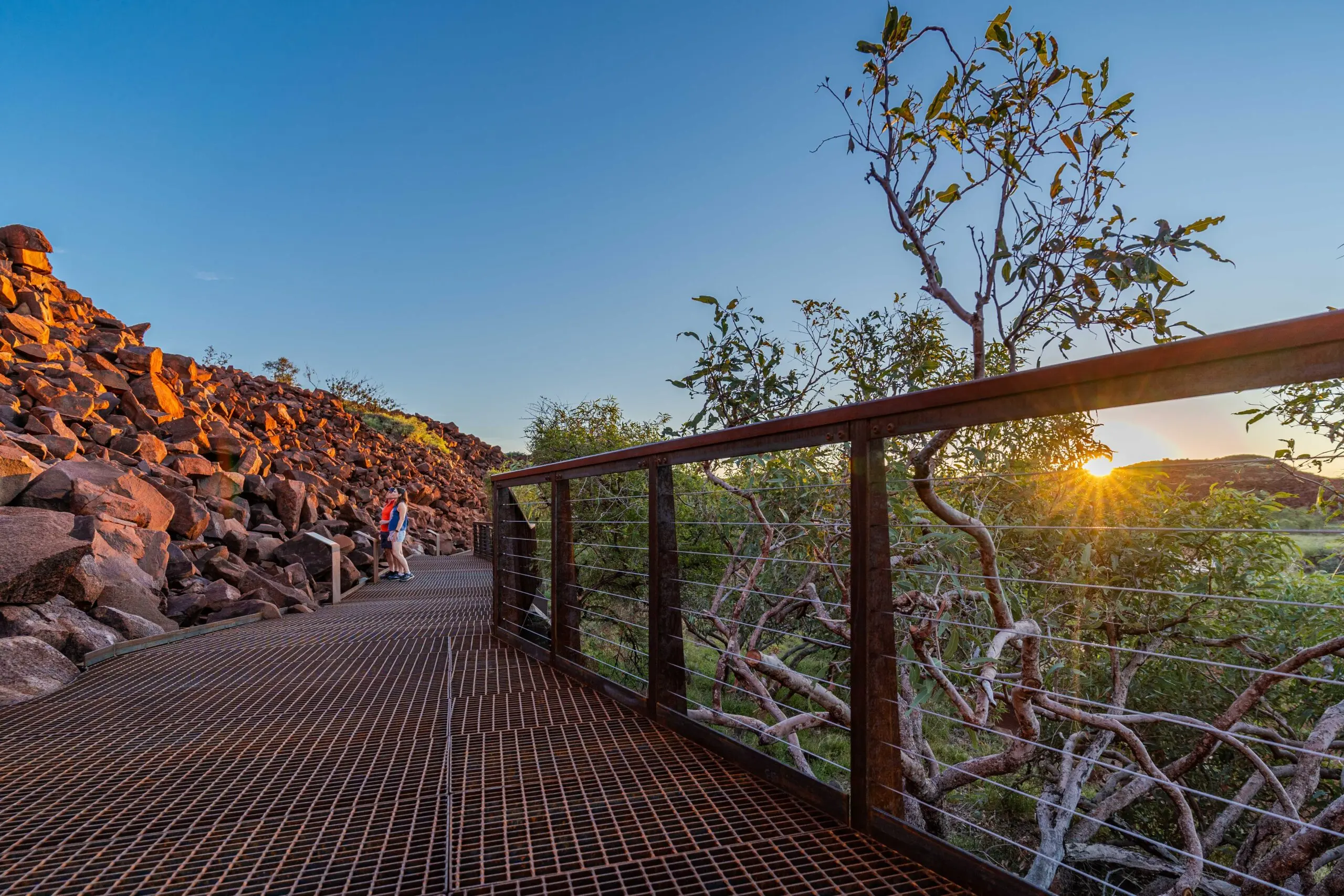

Industrial Walkway Installation

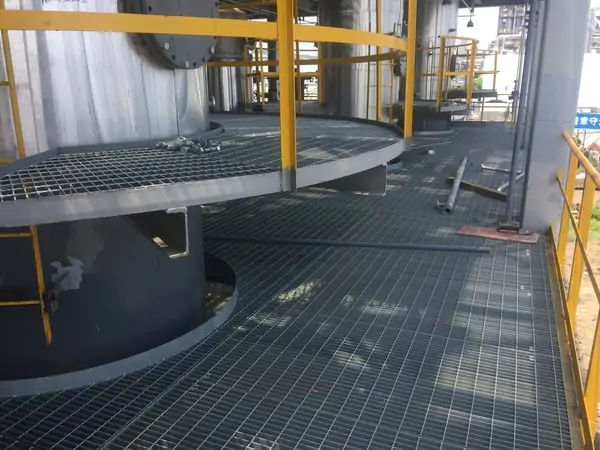

Platform Flooring Application
Press Locked vs Welded Comparison
Overview
What is Press Locked Grating?
Press locked grating is a type of steel bar grating manufactured using high-pressure mechanical interlocking, eliminating the need for welding or rivets. The process involves forcing cross bars through precision-punched slots in the load-bearing bearing bars under tremendous pressure, creating a permanent, rigid connection that can withstand heavy loads and continuous vibration.
Unlike welded grating, press locked grating offers a completely smooth surface with no weld spatter, sharp edges, or raised areas. This makes it the preferred choice for pedestrian walkways, platform flooring, and architectural applications where safety, aesthetics, and clean appearance matter. The mechanical locking mechanism also provides excellent structural integrity, with each joint capable of carrying loads up to 1000 psf in standard configurations.
Manufactured from high-strength carbon steel, stainless steel, or galvanized steel, press locked grating is available in a wide range of bearing bar sizes, pitches, and panel dimensions to meet specific project requirements. Common applications include mezzanine floors, trench covers, drainage covers, and industrial catwalks where reliable non-welded construction and corrosion resistance are essential.
Press locked grating cross-section showing mechanical interlocking joint
Especificaciones
Ficha Técnica
Technical Specifications
Detailed dimensions and load ratings
Dimensiones
Available in standard and custom panel sizes to suit any project requirement.
| Parameter | Value |
|---|---|
| Material | Carbon Steel Q235 / Q355, Stainless Steel 304 / 316 |
| Bearing Bar Height | 25 mm, 30 mm, 32 mm, 38 mm, 40 mm, 45 mm, 50 mm, 65 mm |
| Bearing Bar Thickness | 3 mm, 4 mm, 4.5 mm, 5 mm, 6 mm |
| Cross Bar Size | 5 mm × 5 mm, 6 mm × 6 mm, 8 mm × 8 mm (twisted or square) |
| Bearing Bar Spacing (Pitch) | 12.5 mm, 15 mm, 20 mm, 30 mm, 34.3 mm, 40 mm |
| Cross Bar Spacing | 50 mm, 76 mm, 100 mm, 150 mm |
| Surface Finish | Bare, Hot-Dip Galvanized (HDG), Painted, Epoxy Coated |
| Standard Panel Length | Up to 6000 mm (custom lengths available) |
Características
Características y Ventajas
Key Features
Why choose this grating type
No Welding Required
Press locked grating uses a high-pressure mechanical interlocking process that eliminates the need for welding. This results in a cleaner appearance with no weld spatter, burn marks, or heat-affected zones.
Smooth, Flat Surface
The pressure-locked construction creates a completely flat surface profile with no raised bars or sharp protrusions, making it ideal for pedestrian traffic areas and safety-critical walkways.
Superior Load-Bearing Capacity
Each mechanically locked joint provides exceptional shear strength, with standard configurations supporting uniform loads up to 1000 psf and concentrated loads up to 3000 lbs.
Vibration Resistant
The permanent press-fit connection between bearing bars and cross bars resists loosening under continuous vibration, making press locked grating ideal for machinery platforms and industrial environments.
Corrosion Resistant Options
Available in hot-dip galvanized, stainless steel, or epoxy-coated finishes, providing long-term corrosion protection in harsh environments including chemical plants, offshore platforms, and wastewater facilities.
Architecturally Appealing
With its clean lines and uniform appearance, press locked grating is often selected for architectural grating applications such as decorative facades, sunscreens, and building entrances.
Aplicaciones
Dónde se Instala

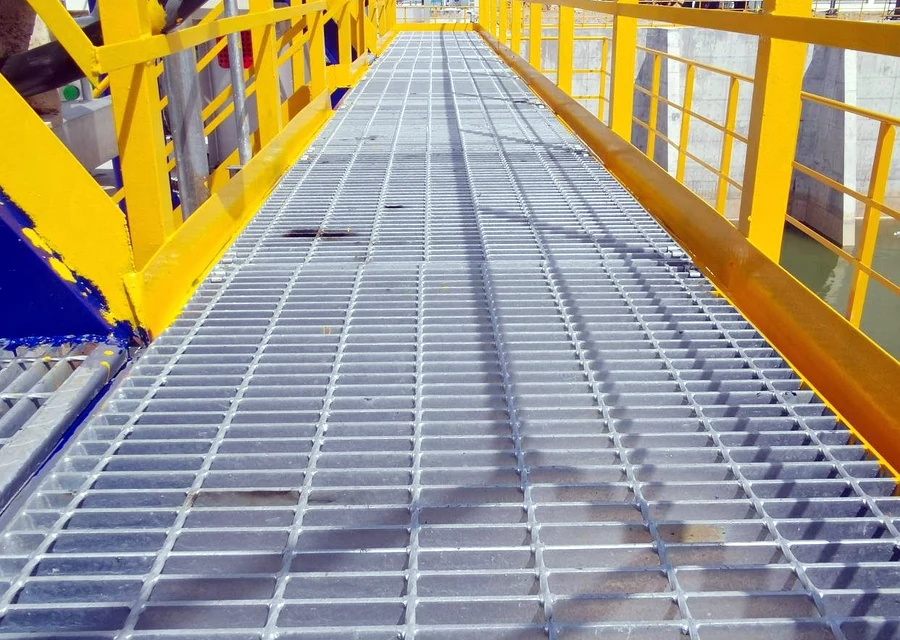

Industrial Walkways & Platforms
Safe, slip-resistant walkway surfaces for factories, refineries, and chemical processing plants requiring non-welded construction.
Mezzanine & Catwalk Flooring
Lightweight yet strong mezzanine decking with smooth surface for warehouse and logistics center installations.
Architectural Facades & Screens
Decorative building facades, sun shading screens, and ventilation panels with clean aesthetic appearance.

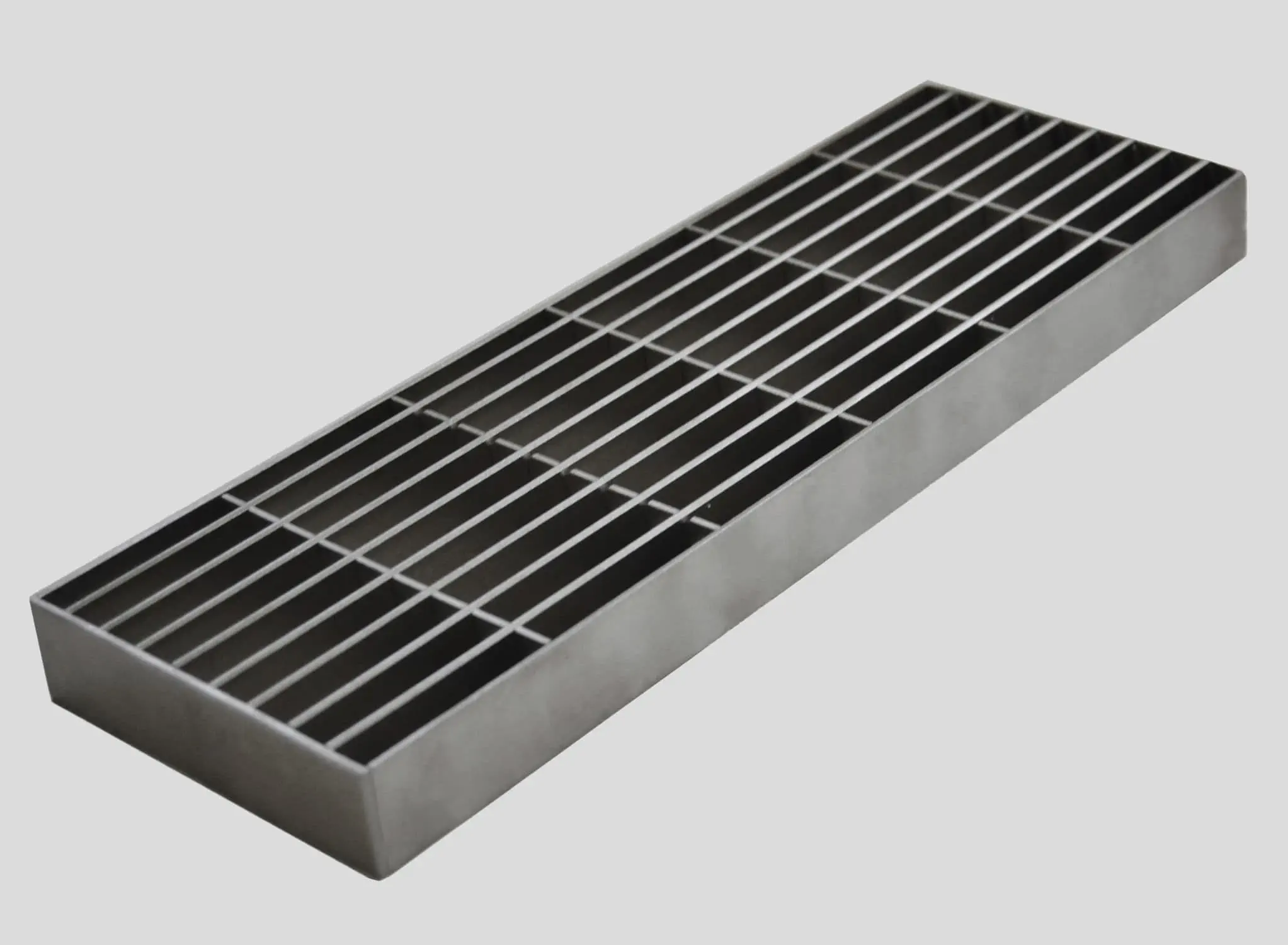

Trench & Drainage Covers
Heavy-duty trench cover systems for municipal drainage, roadway channels, and industrial fluid management.
